Description
Autel MP408 can capture signals four times faster than any other oscilloscopes, a high speed sampling rate from 80MS/S TO 20MS/s and incredible bandwidth of 20MHz, which makes viewing waveforms on high resolution 8” or 10” color screen clear and simple. With Free MV108, Autel MaxiScope MP408 measures and tests virtually all the electrical and electronic components and circuits in most modern vehicles. In addition, it can be used in a wide range of industries related with electronic signals.

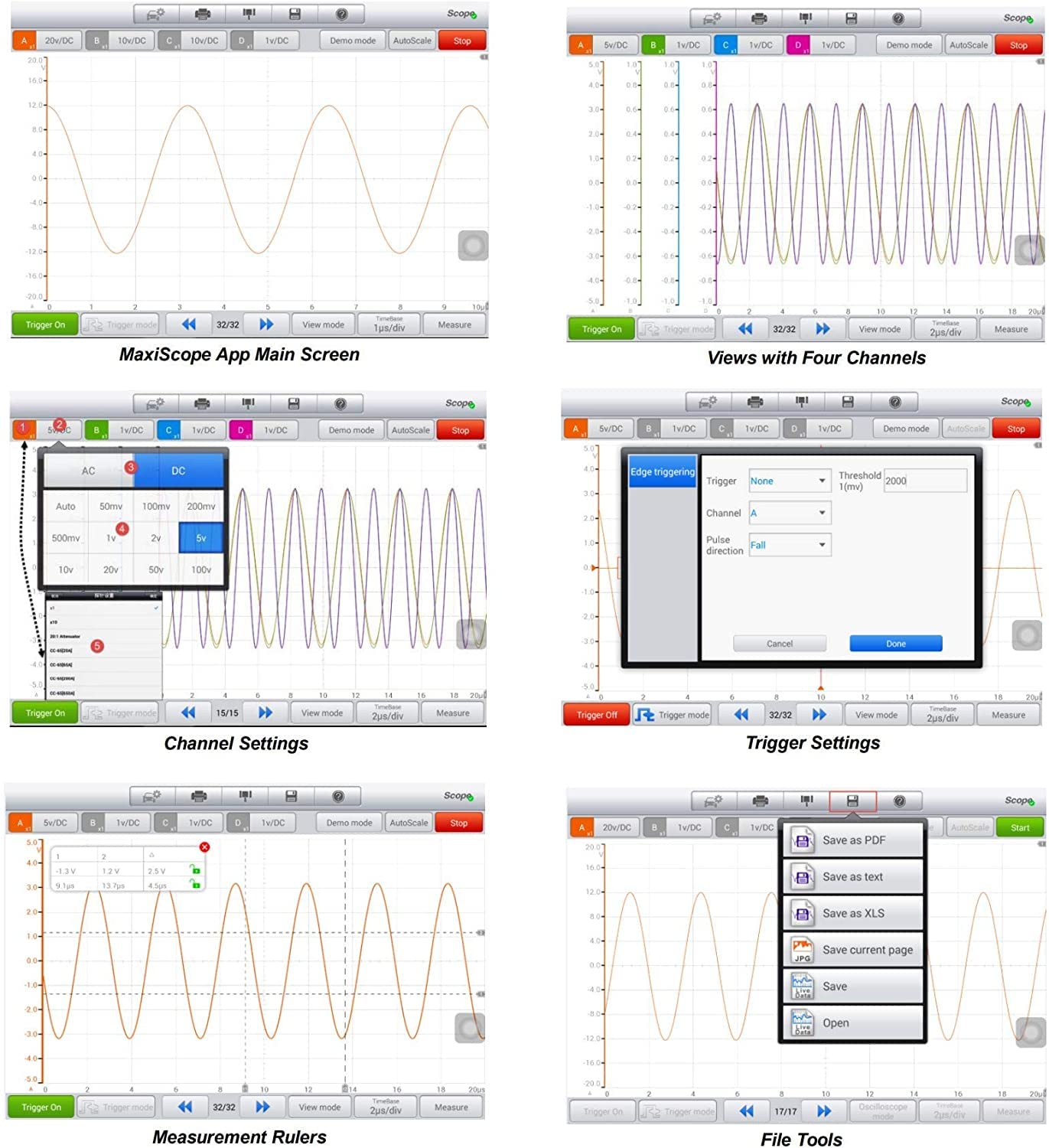

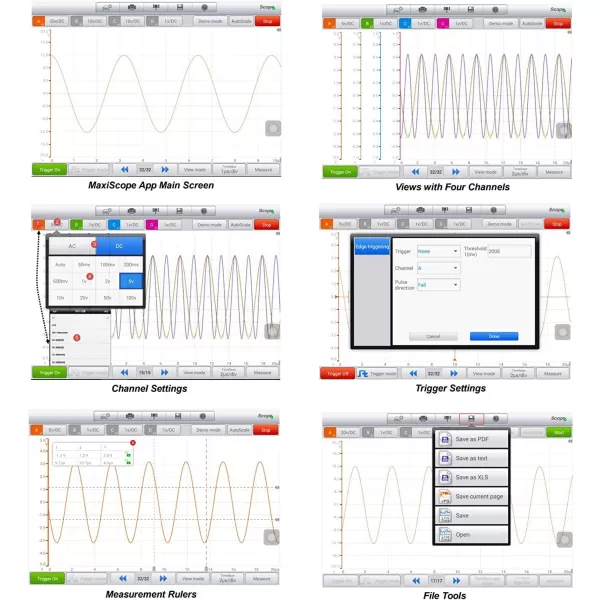

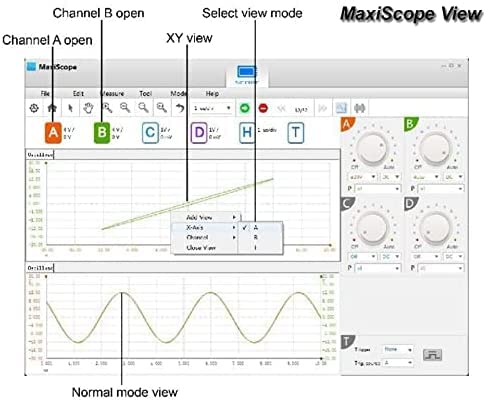

Autel MP408 can work in combination with your PC or MaxiSys Tablet, which turns into a powerful diagnostic tool via the MaxiScope Software, a processing program that runs on the computer, or via the MaxiScope App, a processing program that runs on the Android tablet, to present as an operating interface displaying waveforms and menus allowing users to set the testing options, triggers, probe types and various configurations.

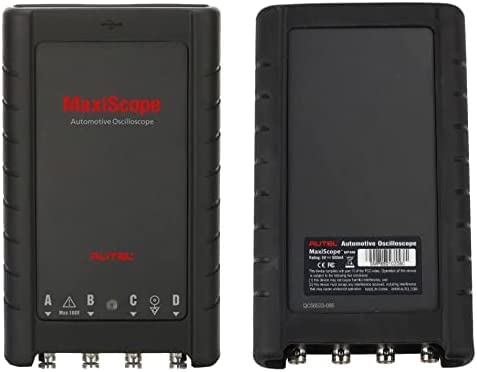

This advanced automotive oscilloscope features color coded 4-channel control panel for fast sampling, making it a complete electronics lab in one compact, low-cost, USB-powered unit.Autel MaxiScope MP408 guarantees that this product will be free from all defects in materials and workmanship for a period of one (1) year from the date of the original purchase with free online software update through the Internet.

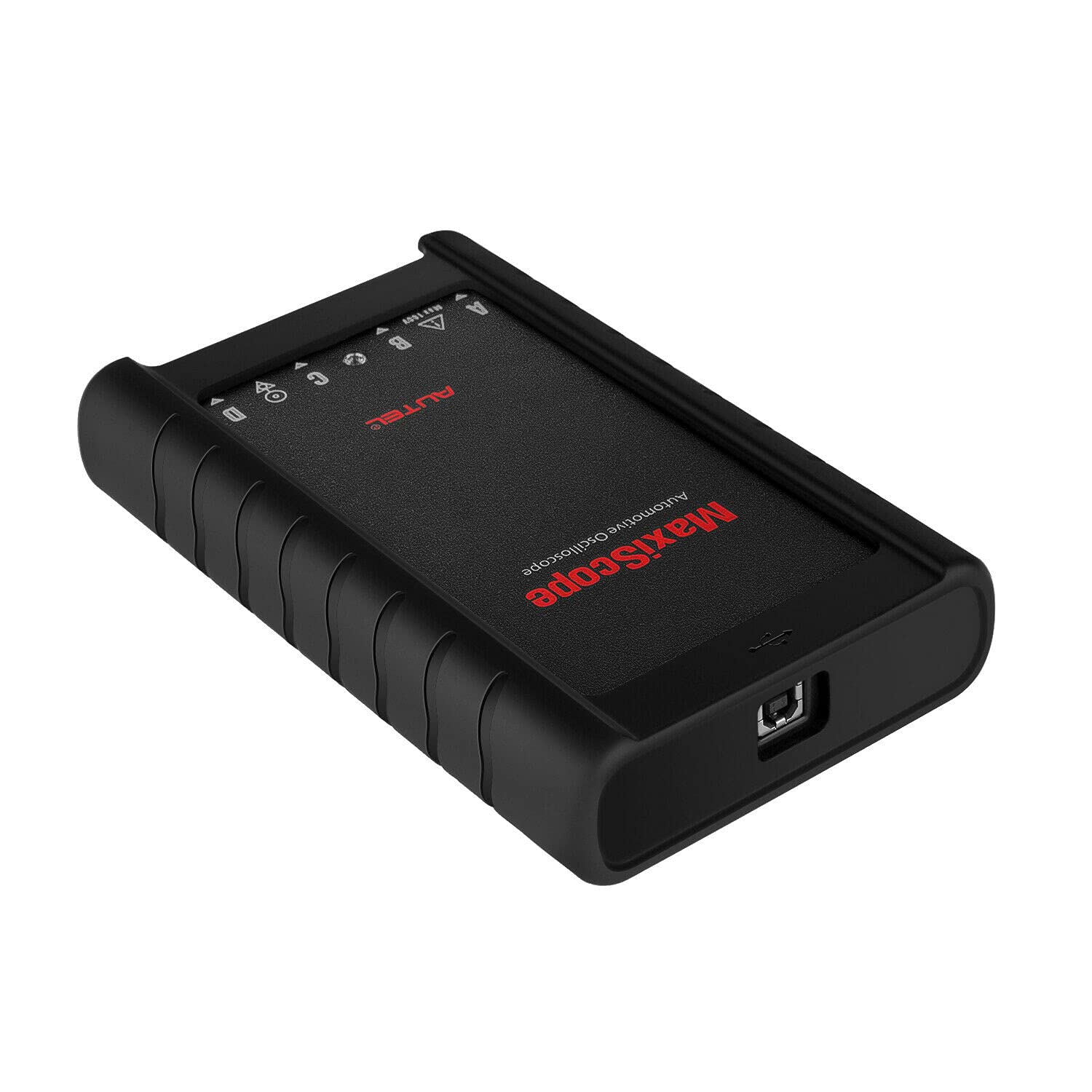

Autel MaxiScope MP408 measures and tests virtually all the electrical and electronic components and circuits in most modern vehicles. In addition, it can be used in a wide range of industries related with electronic signals. Power for the MaxiScope MP408 comes directly from the USB port of the connected PC, so no batteries or power leads are required, making the system very versatile and portable to use.
Featuring one-click auto setup of the voltage scale and time base, Autel MP408 is compatible with LIN, CAN and FlexRay data bus standards to read and display electrical signals in high resolution waveforms. Capture Every Detail, By observing the waveform curves, users can effortlessly capture every detail of the signal to determine whether the electronic component is working properly. Never again will you miss those hard-to-find intermittent faults.
Package Dimensions : 15.98 x 15.2 x 6.54 inches; 5.07 Pounds
Date First Available : November 30, 2021
Manufacturer : AUTEL
The MP408 is able to measure and test virtually all the electrical and electronic components and circuits in any modern vehicles, compatible with LIN, CAN and Flex Ray data bus standards. It features one-click auto setup of voltage scale and time base, allows manual editing of measurement parameter display. It features color coded 4-channel control panel. Read/ display/ record/ playback high resolution waveform data. It has direct power supply through USB connection, no battery required.The main purpose of this four-channel oscilloscope Maxi Scope MP408 is to display electronic signals, transfer electronic signals into waveform curves by simply connecting to the USB port on any standard Windows based computer or Android device, making full use of your PCs/Android devices processing capabilities, large screens and familiar graphical user interfaces, to offer outstanding performance.

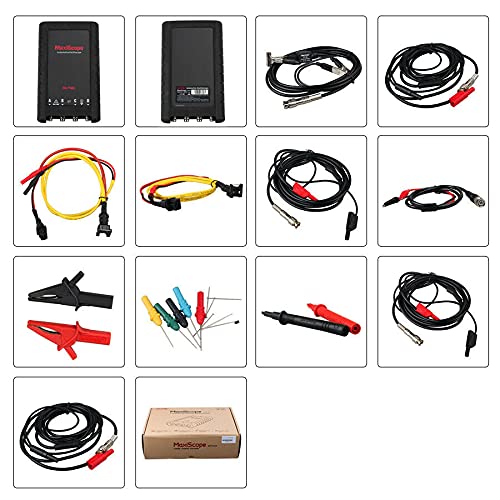

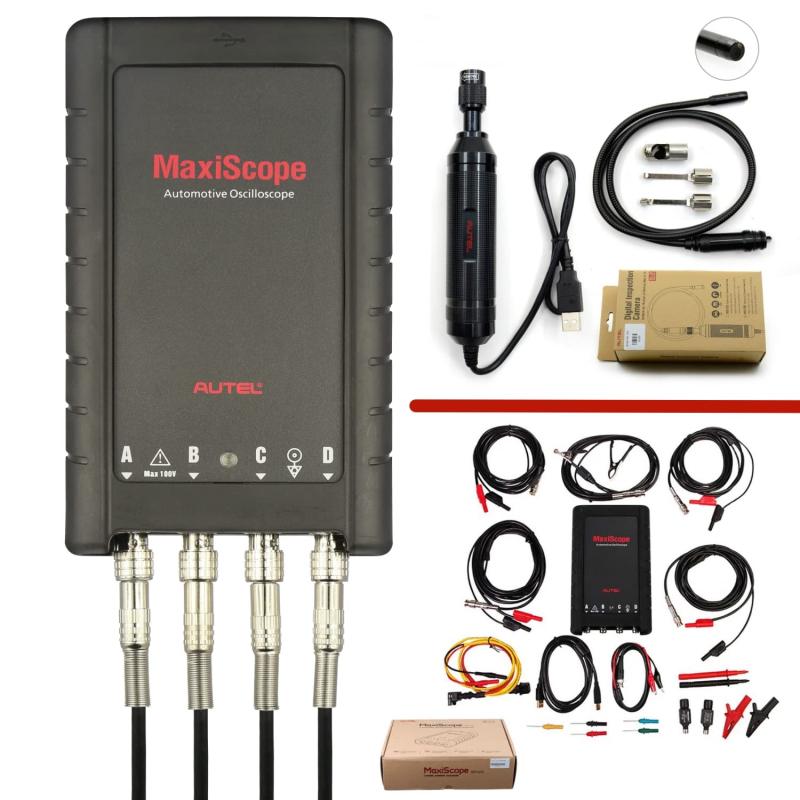

Package Including
- 1pcs x Maxi Video MV108
- 1pcs x Autel Maxi Scope MP408 Interface
- 1pcs x 1.5m USB Cable

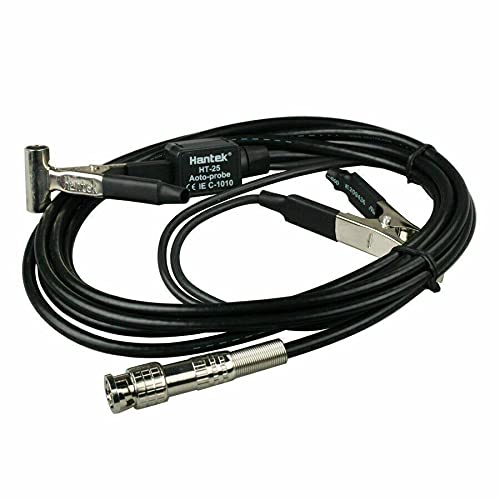

- 4pcs x 3m (10ft) Screened Test Leads
- 1pcs x Secondary Ignition Pickup
- 1pcs x 2-pin Breakout Lead

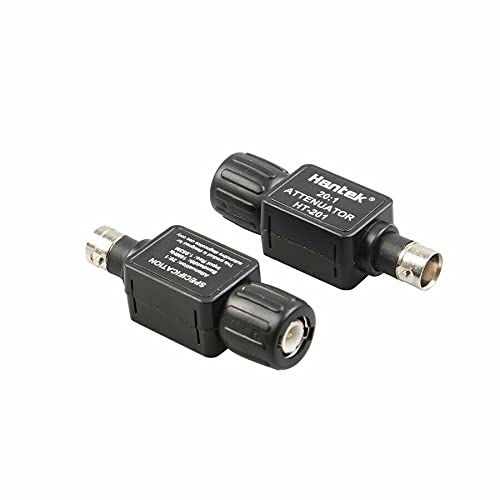

- 2pcs x Attenuators 20:1
- 1pcs x Large Crocodile Clip Set
- 1pcs x Small Crocodile Clip Set
- 1pcs x Acupuncture Probe Set
- 1pcs x Multimeter Probes
Autel MV108 MaxiVideo Digital Inspection Camera Endoscope, Still Images and Videos, Waterproof Imager Head, Work with PC MS906 MS906S MS906 PRO-TS MS908P MX808 MK808 MS909 MS919 MS Ultra MS Elite(Autel MV108 MaxiVideo Digital Inspection Camera Endoscope, Still Images and Videos, Waterproof Imager Head, Work with PC MS906 MS906S MS906 PRO-TS MS908P MX808 MK808 MS909 MS919 MS Ultra MS Elite)
