Description

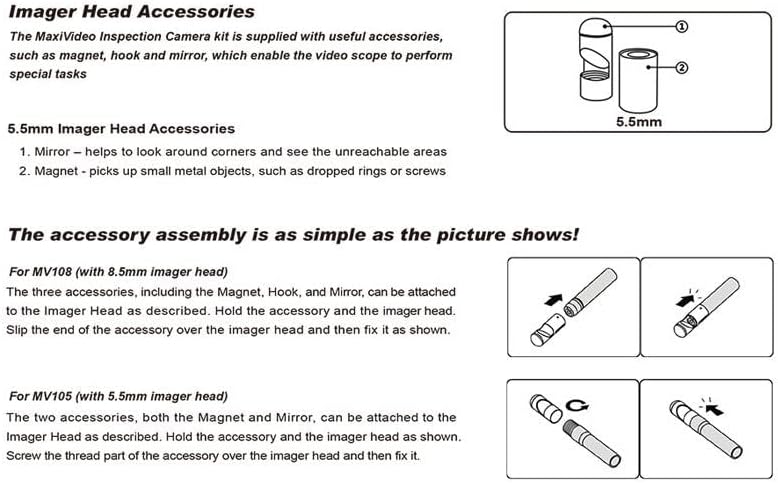

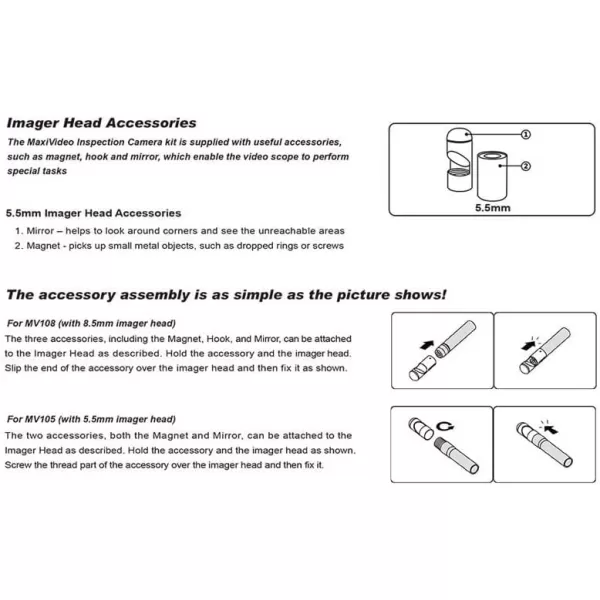

It features a 39.37inches cable. The waterproof 5.5mm diameter camera is bendable and suitable for various types of environment, including confined places or dark area, damp or wet area etc. It comes with a magnet and a Mirror.

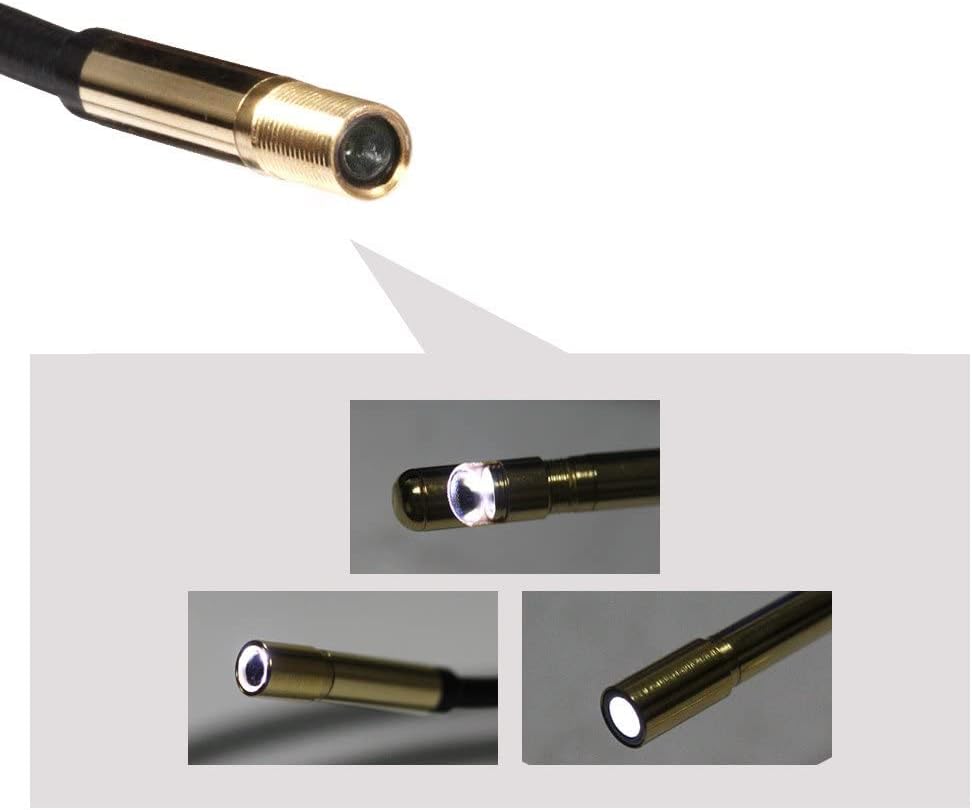

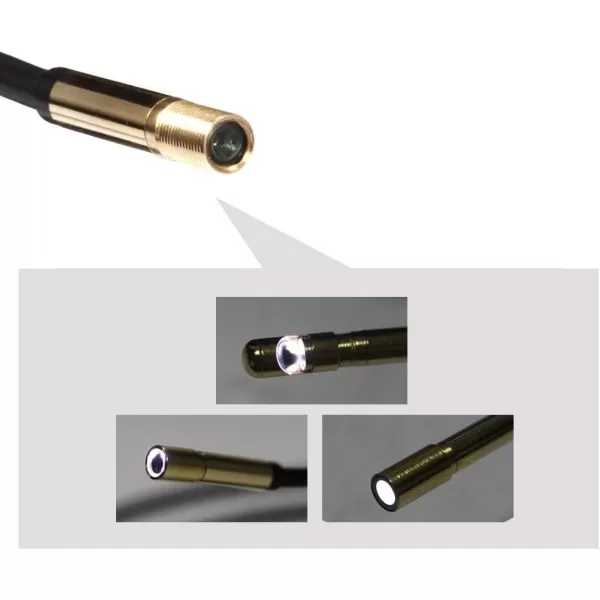

Super bright white LED light on camera tip, it greatly helps to improve image brightness and clarity even in dark or low-light condition. Moreover, the digital inspection camera can capture 320*240dpi image for your analyzing

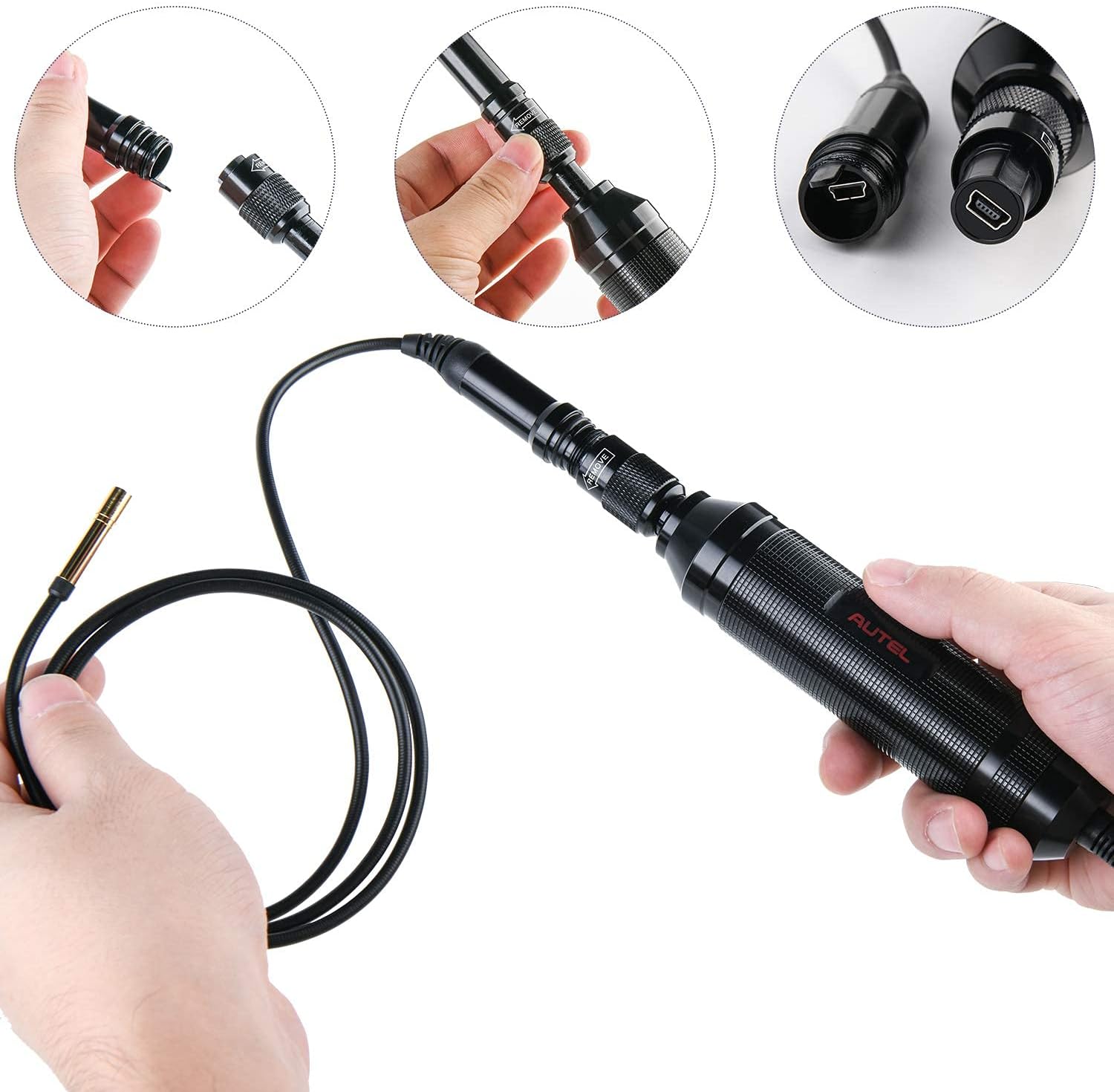

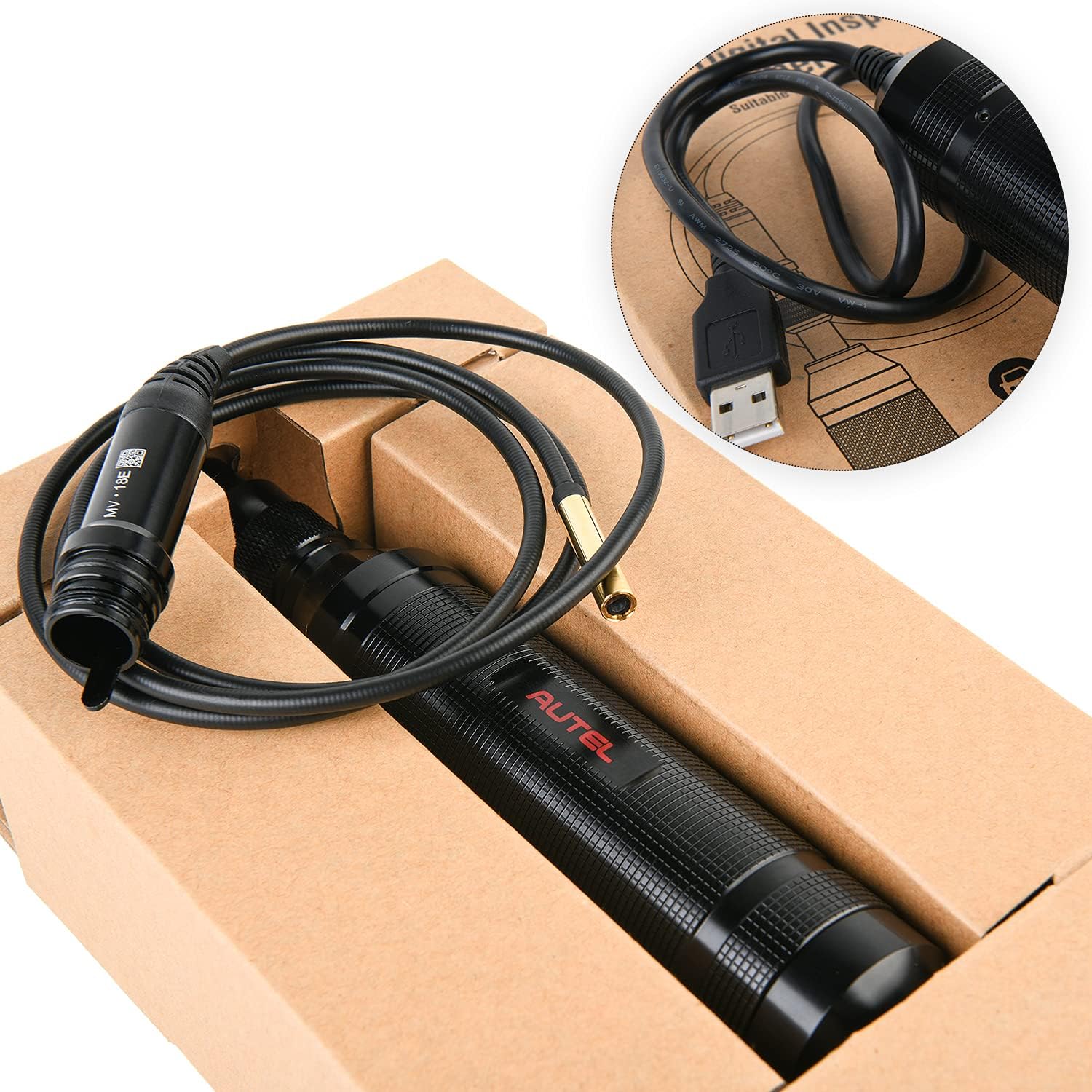

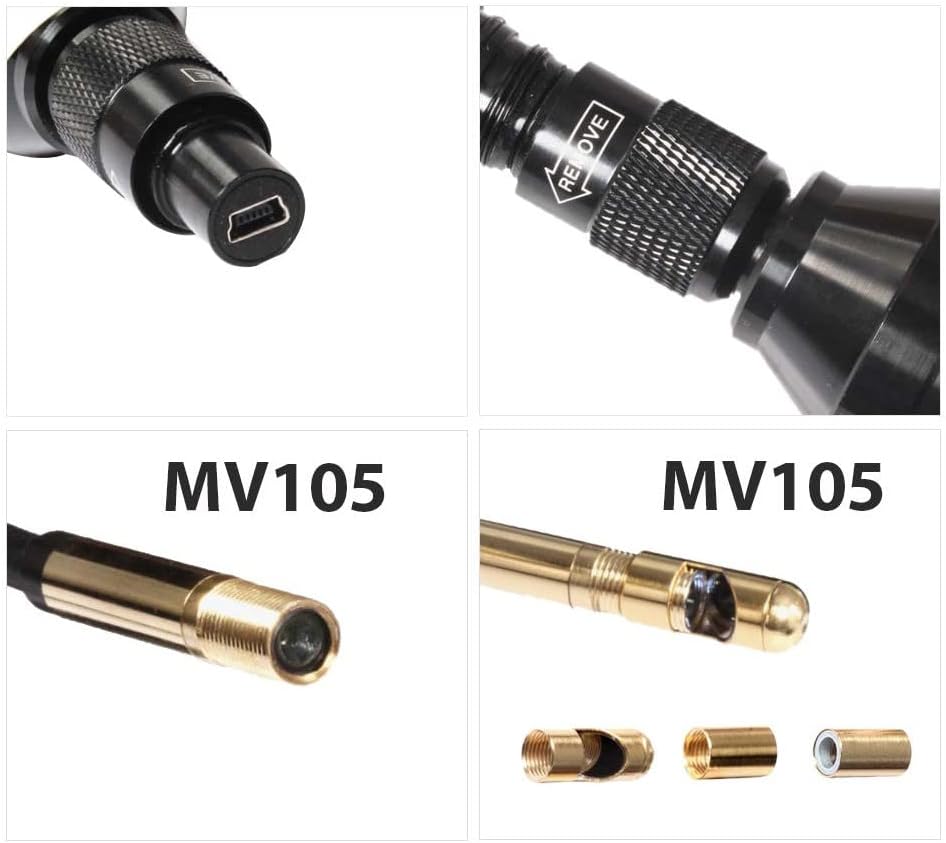

The digital inspection camera is made up of Removable Imager Head Cable, Handgrip, and USB Cable. They are all designed for comfortable grips and agile operation to special tasks.
Small diameter allows it to be used in the tight spaces. Wonderful for up-close visual inspections in confined areas, such as engine cylinders and small part inspections. Powerful and perfect for inspecting most spark plug holes.
Compare to MV108, it has a smaller image head 5.5mm (0.22’’), closer optimal viewing distance 3/8’’ to 12’’ (0.95cm to 30cm), and a lighter weight 0.2kg. You can use it for tighter space inspection.

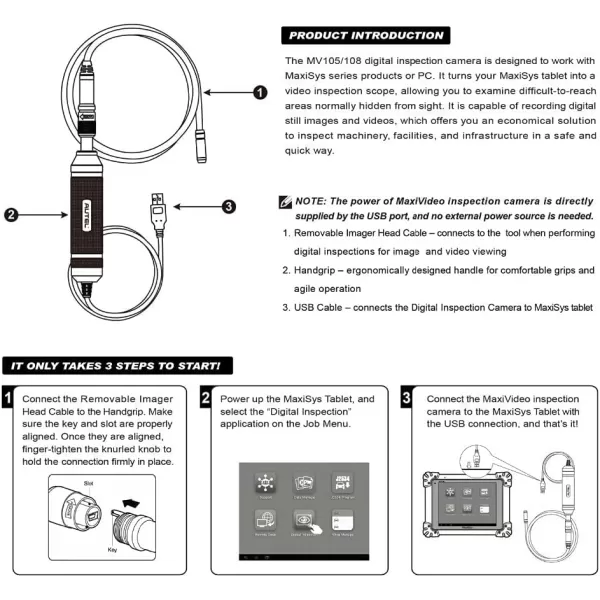

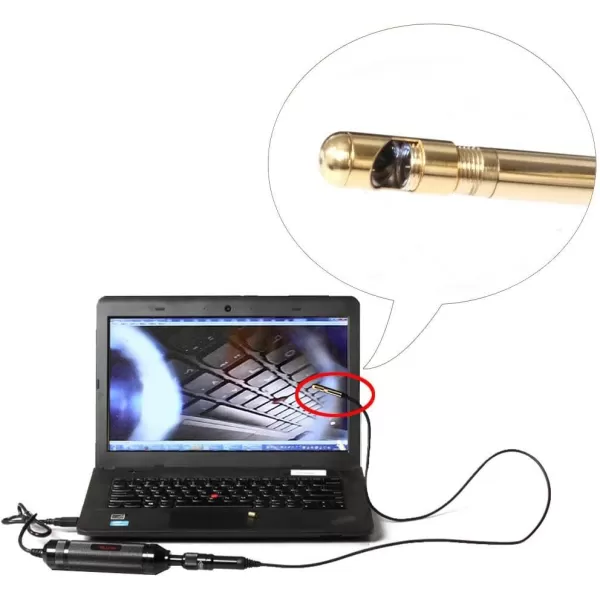

The MV105 digital inspection camera is designed to work with MaxiSys series products (except MaxiSys 906) or PC.

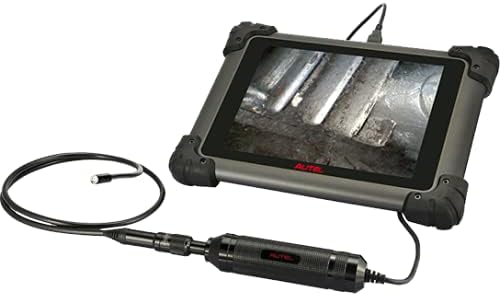

It turns your MaxiSys tablet into a video inspection scope, allowing you to examine difficult-to-reach areas normally hidden from sight.
It is capable of recording digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure in a safe and quick way.
Specifications:
Optimal Viewing Distance: MV105 3/8’’ to 12’’ (0.95cm to 30cm)
Image Capture: MV105 (320 x 240)

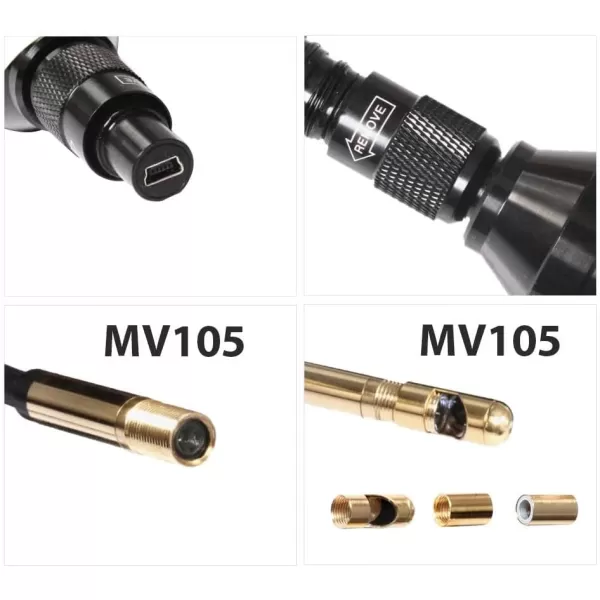

Image Head: MV105: 5.5mm (0.22’’)
Operating Temperature:
Main Unit: 0°C to 50°C (32°F to 122°F)
Cable: -10°C to 70°C (14°F to 158°F)
Storage Temperature: -20°C to 75°C (-4°F to 167°F)
Waterproof: Imager head and cable to 1m(3’)
Weight: 0.2kg with 5.5mm diameter imager head
Compliance: FCC (EMC), CE (EMC and LVD)
