Description

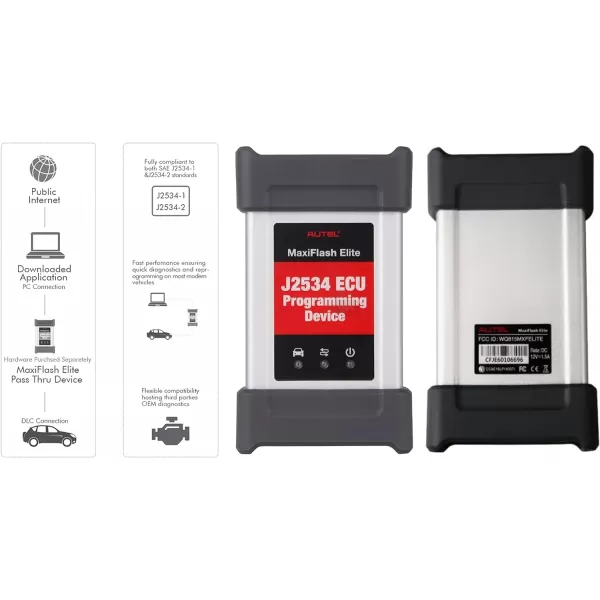

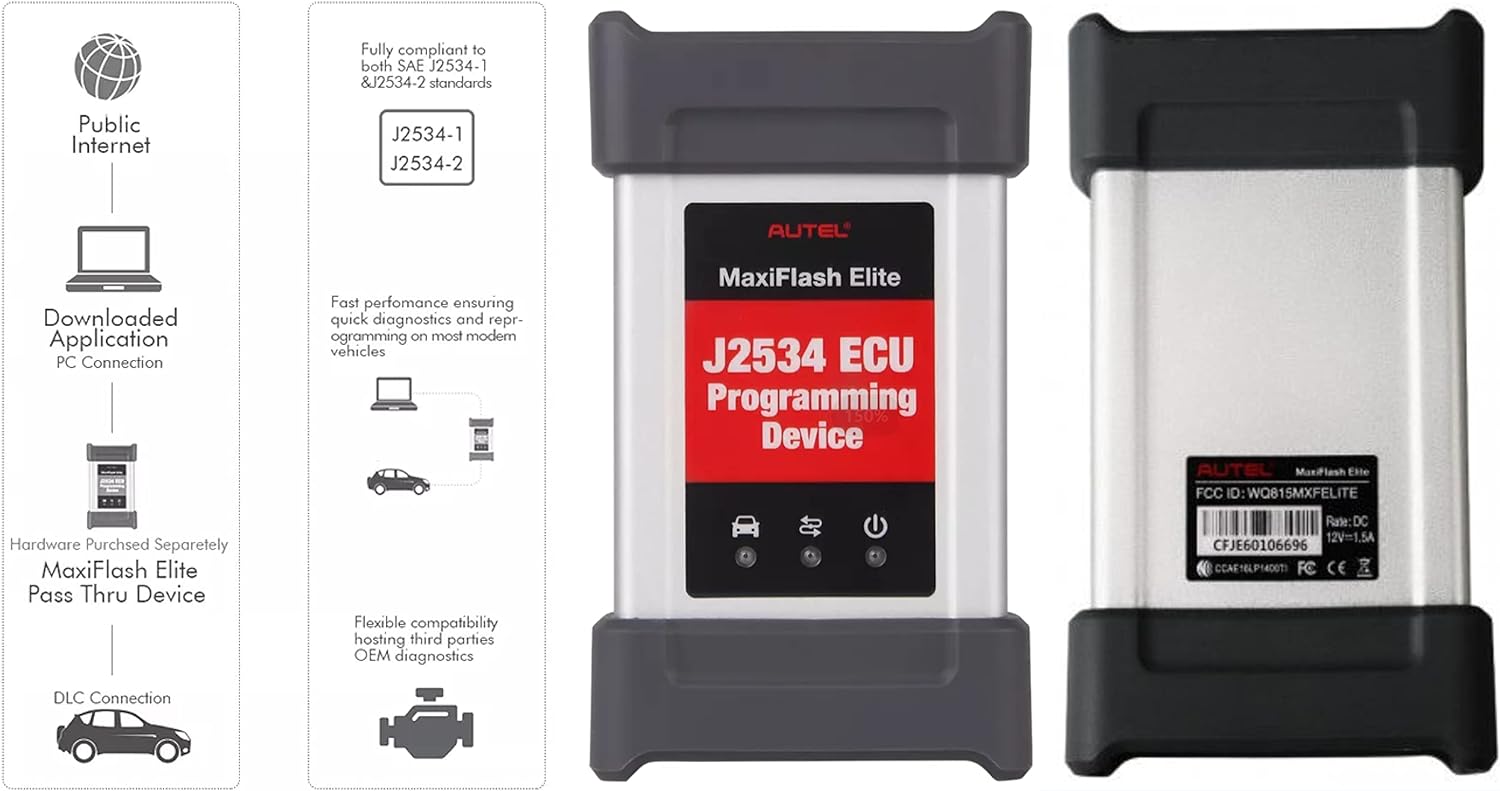

As a multi-protocol Pass-Thru vehicle interface, MaxiFlash Elite is a fully compliant SAE J2534-1 & SAE J2534-2 (March 2006) device. Specially designed to provide users with convenient PC communication and ECU reprogramming capabilities on any modern vehicle diagnostic bus, MaxiFlash Elite offers the most significant features desired by OEM customers: reliability, fast performance and flexibility.
Fully compatible with both SAE J2534-1 and J2534-2 reprogramming standards. Compatible with Toyota Techstream, Volvo VIDA, Honda HDS, Jaguar-Land Rover IDS and BMW 3G for OEM diagnostics. Fast performance ensures quickly reprogramming even the newest controllers.
Wireless with advanced networking functions. Built-in wireless and data storage. Rugged design capable of withstanding harsh environments. Internet updateable.

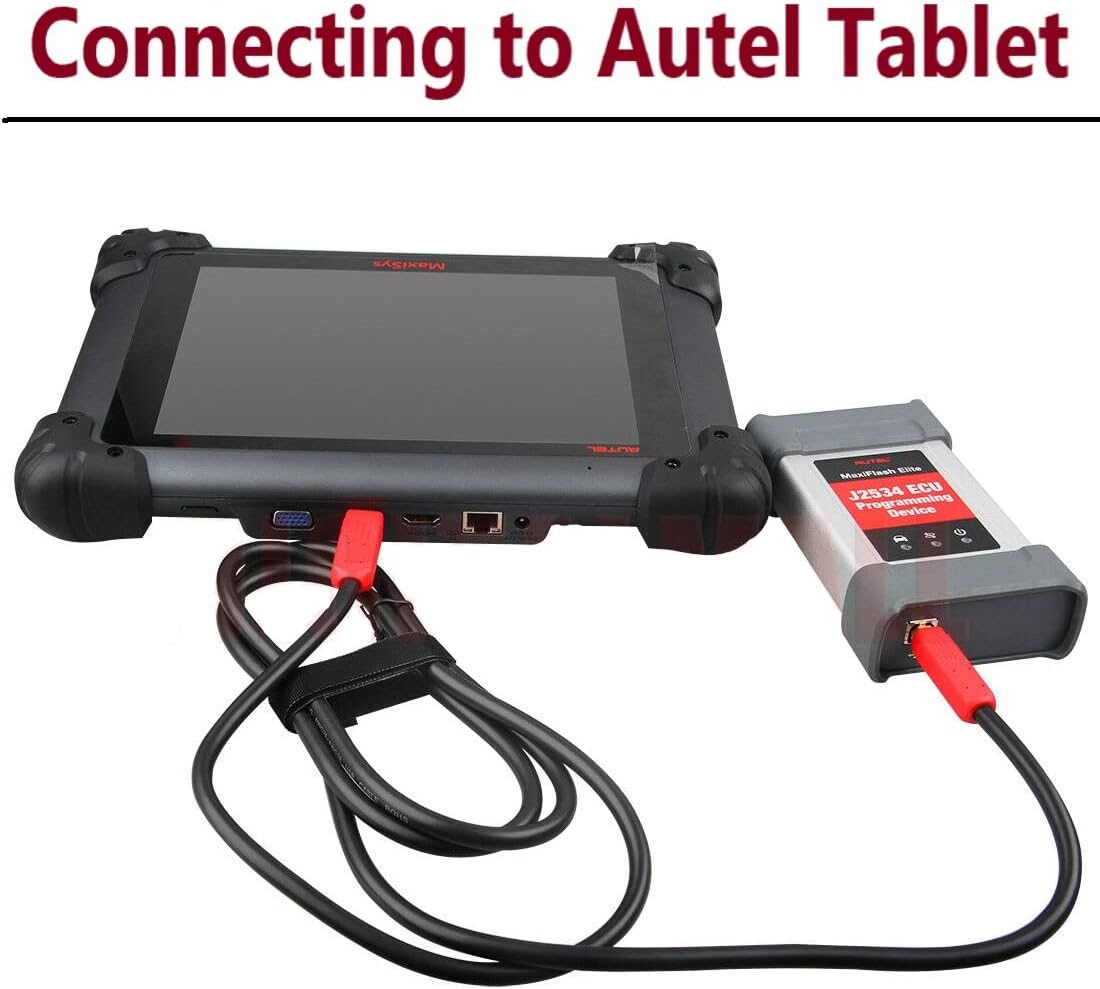

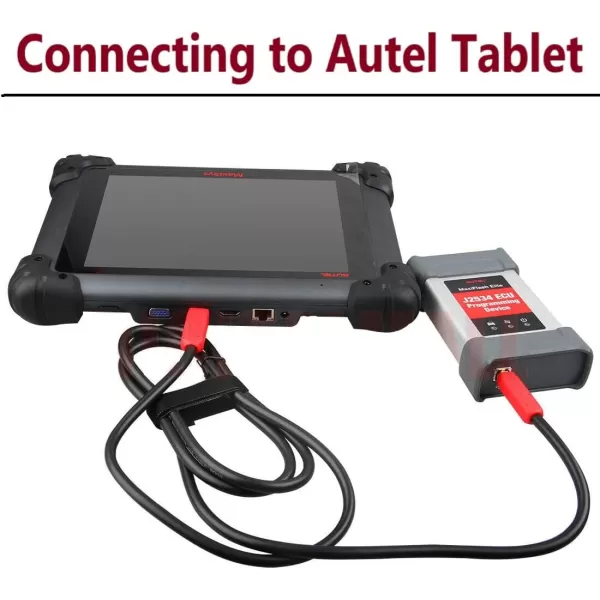

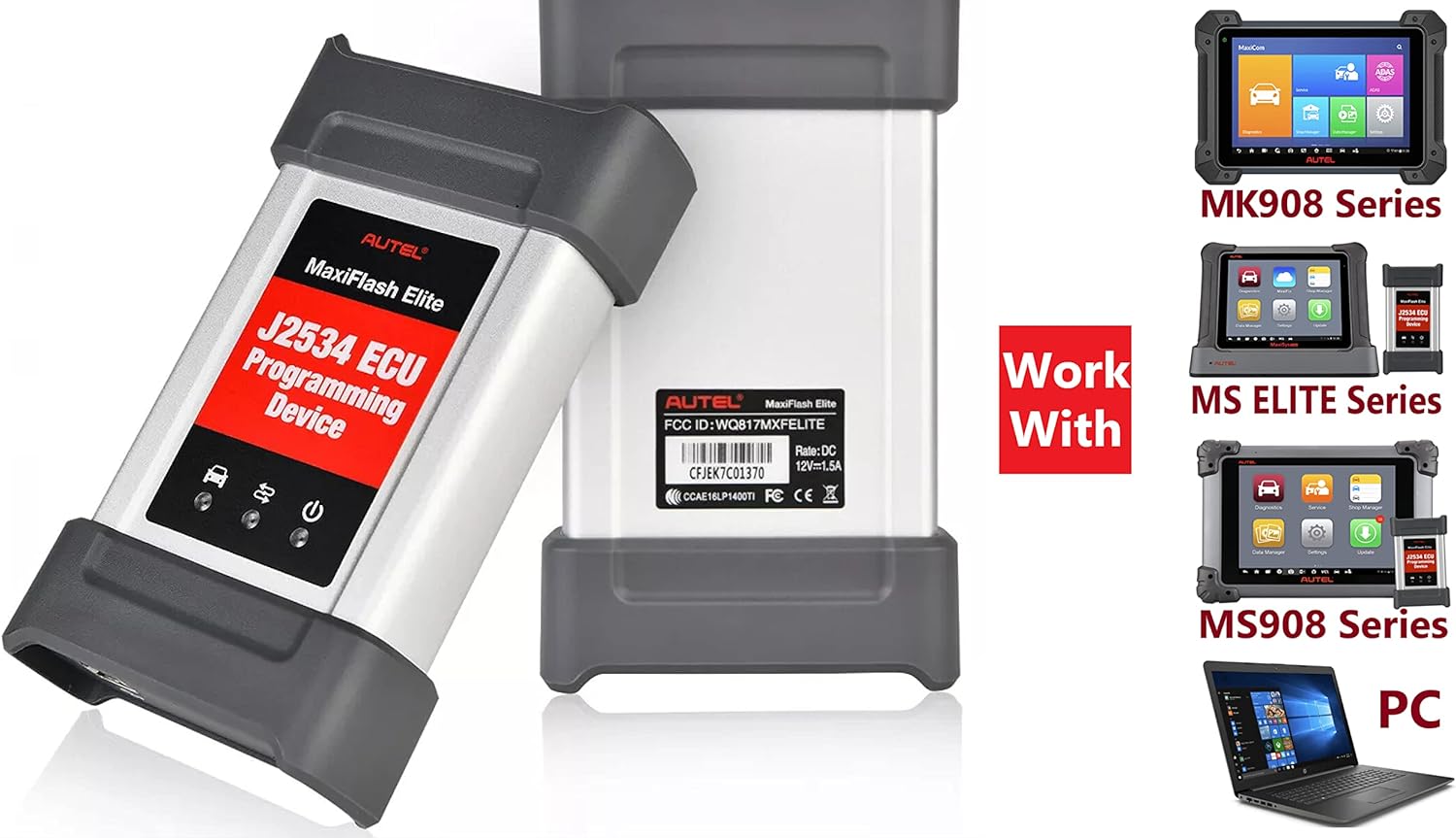

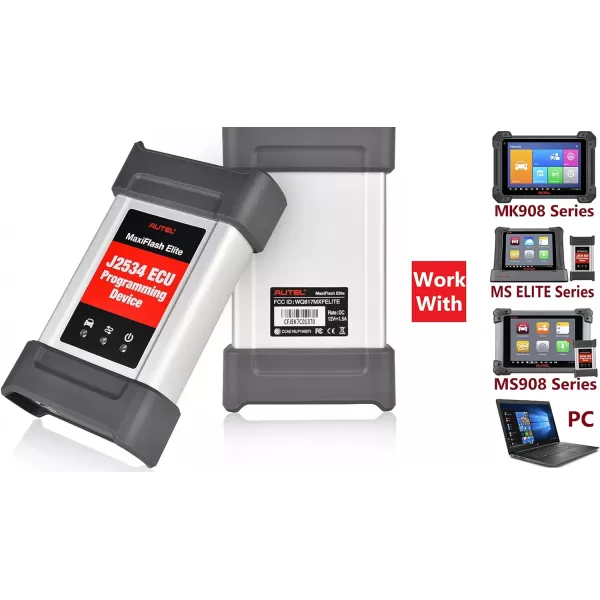

MaxiFlash Elite is compatiable with MaxiSYS MS908S, MaxiSYS MS908S II, MaxiSYS MS908S Pro, MaxiSys MS908S Pro II, MaxiSYS MS908CV, MaxiCOM MK908, MaxiCOM MK908 Pro, MaxiCOM MK908 Pro II, MaxiSYS Elite, MaxiSYS Elite II and Personal Computer
Supports simultaneous communication definition in J2534-1, running 3 protocols at the same time, which greatly improves reprogramming and diagnostic speed. Embedded with the ARM9 Dual-core processor (clocked up to 500MHz), which further boosts the communicating speed.Rugged aluminum case with non-slip rubber end caps, capable of withstanding harsh environment.
Bus Protocols: Primary CAN/ISO15765/GMLAN, Secondary CAN/ISO15765/GMLAN (Dual or Single Wire), For Ford SCP (J1850PWM), for GM Class2 (J1850VPW), KWP2000 (ISO9141/14230), for Chrysler SCI (J2610), Compliant to ISO 22900-1 MVCI physical layer
